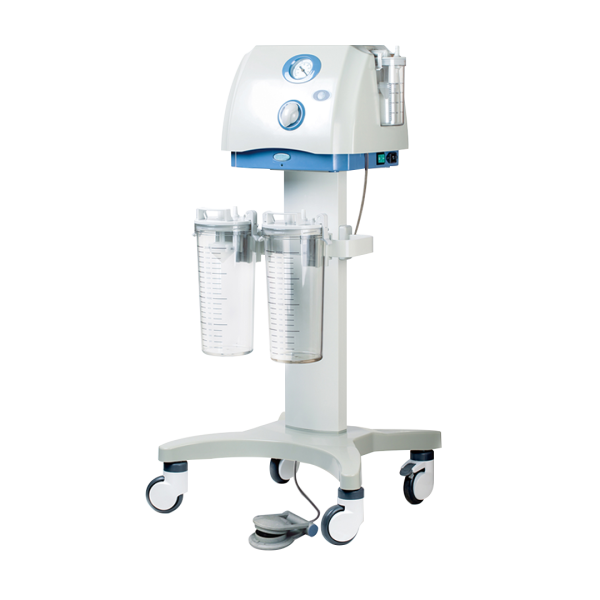

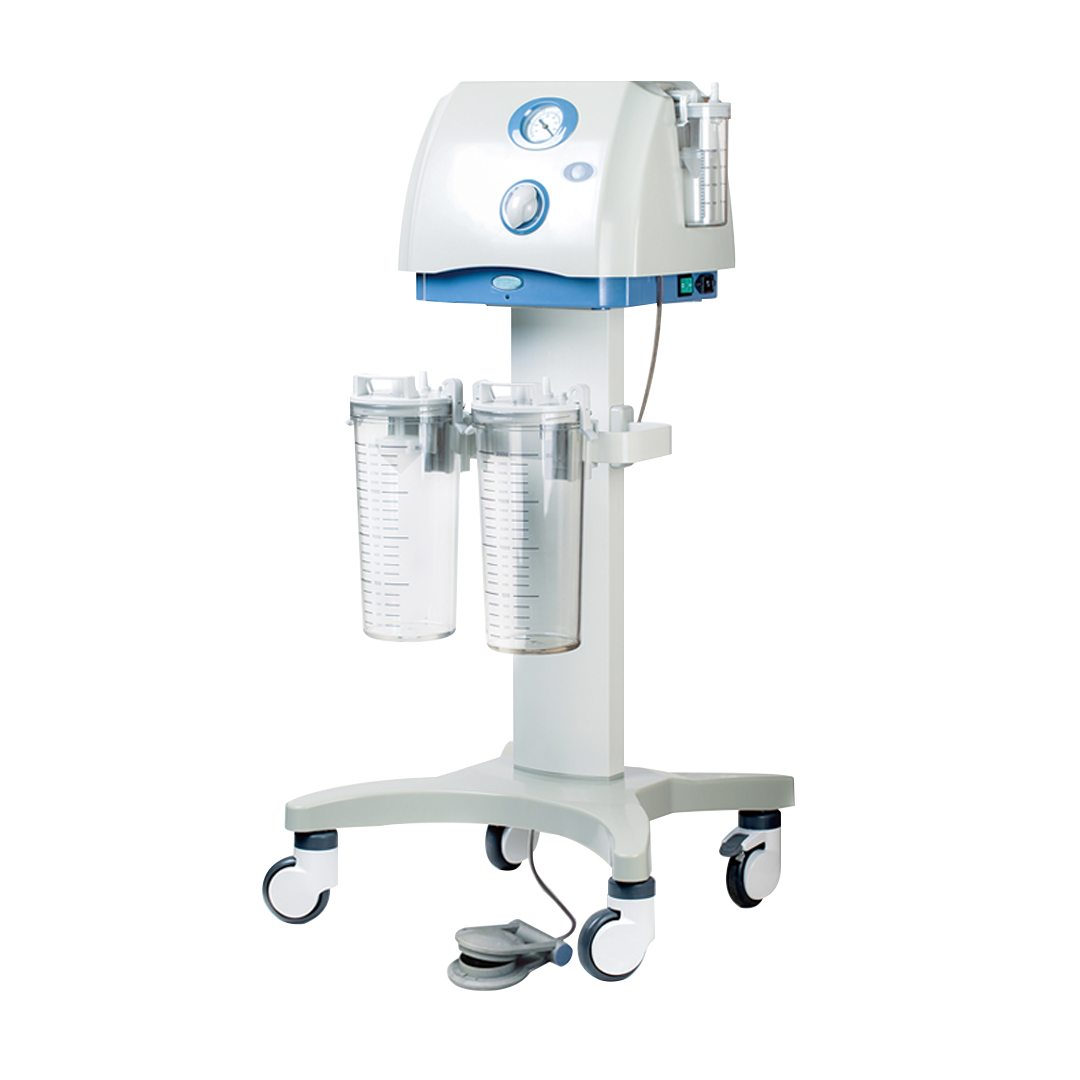

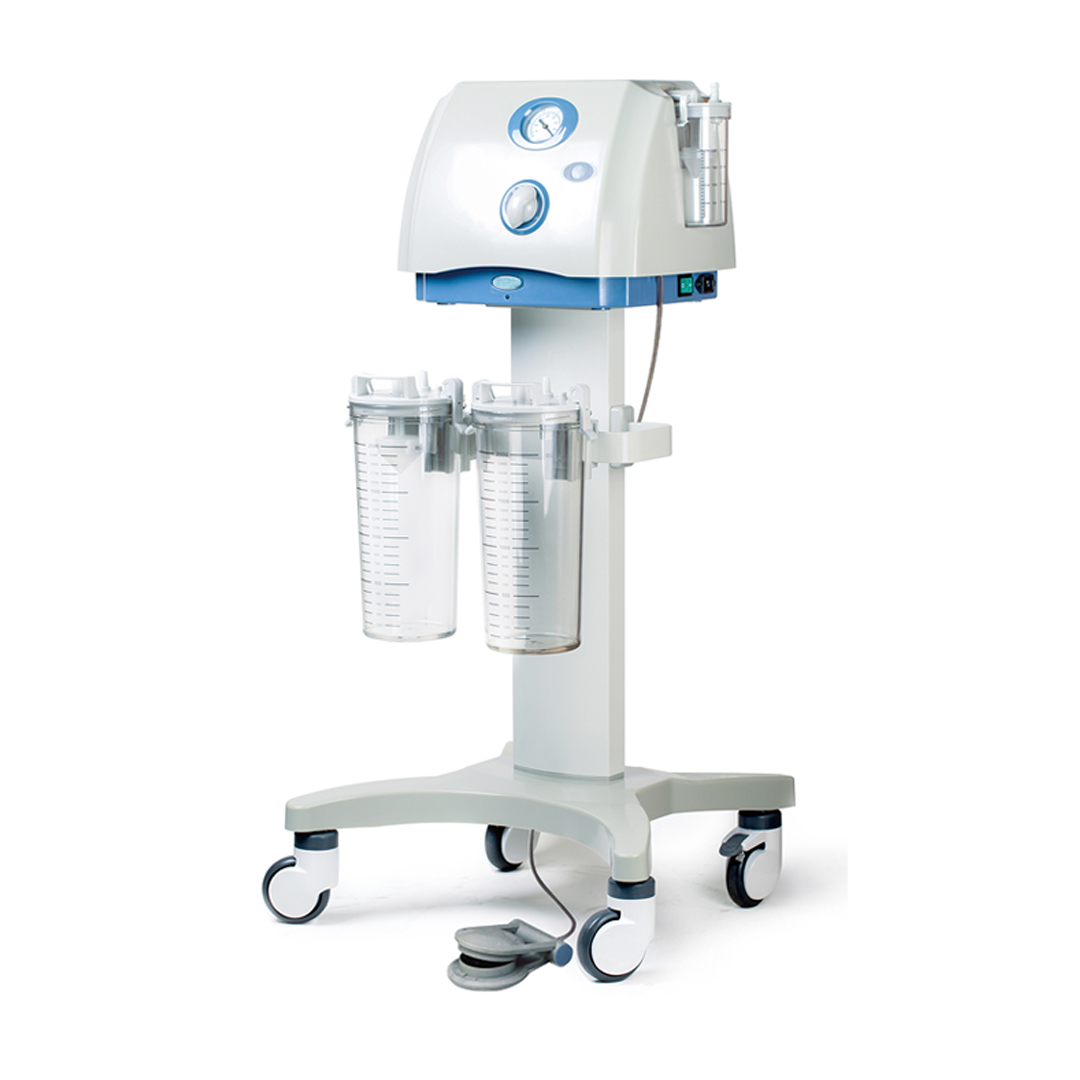

YDX-100M-25A Suction Pump

YDX-100M-25A Suction Pump: Reliable and Efficient Medical Equipment

The YDX-100M-25A Suction Pump is a high-performance solution designed for medical settings, providing reliable suction for various medical procedures. This suction pump is essential for professionals needing efficient and effective suction to handle purulent discharge, phlegm, and other fluids.

Key Features of the YDX-100M-25A Suction Pump

• Oil-Free and Maintenance-Free: The YDX-100M-25A Suction Pump boasts a dual diaphragm pump that operates without oil. Therefore, it minimizes maintenance and ensures a cleaner suction process, ideal for maintaining hygiene in busy medical environments.
• Stability and Durability: It offers stability and operates quietly. Consequently, it reduces noise in various medical settings, allowing for a more focused and less disruptive environment.
• Automatic Overflow Protection: It prevents spills and guarantees safe operation during critical procedures. This feature is essential for maintaining a clean and controlled workspace.

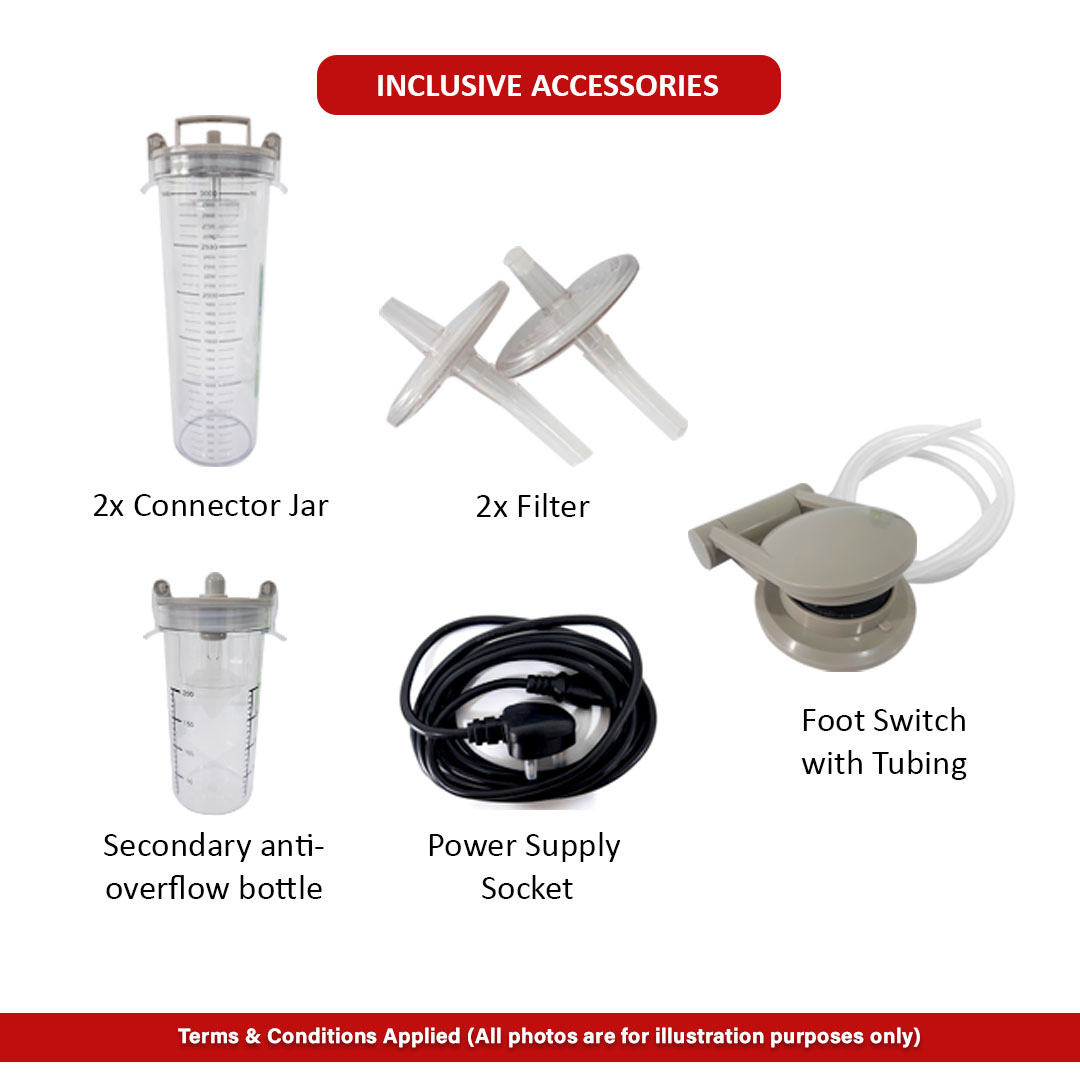

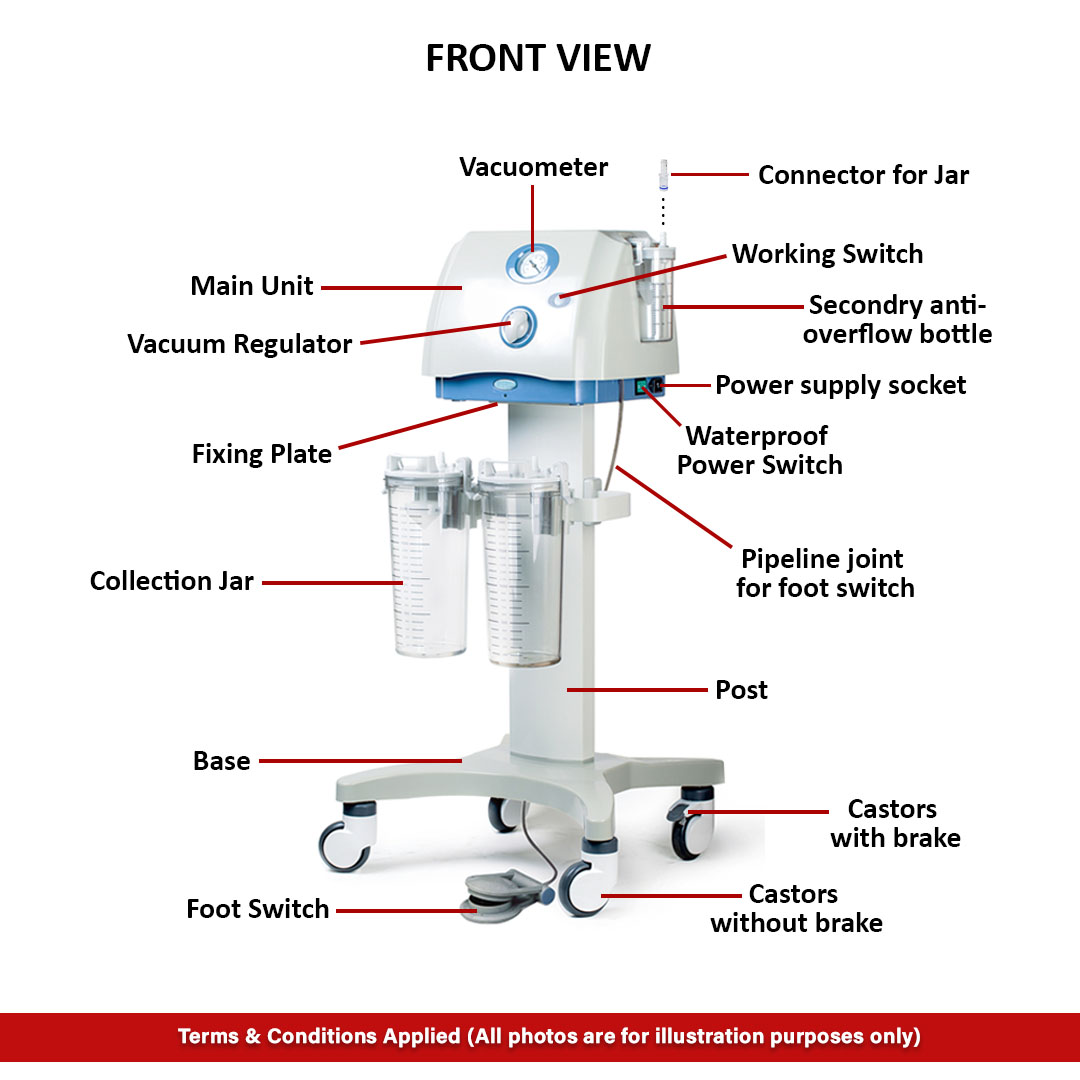

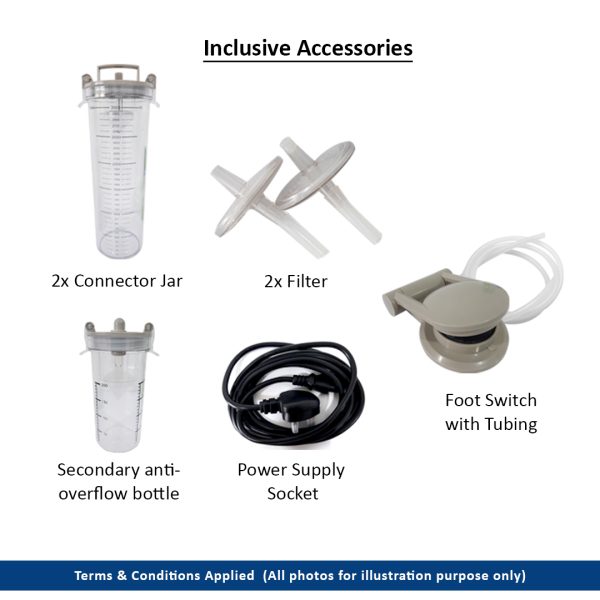

• Convenient Design Features: The pump includes a polycarbonate collection bottle that is both durable and easy to clean. Additionally, it features a pressure gauge display, which allows for precise monitoring of suction levels, enhancing its usability.
• EU CE Certification: The YDX-100M-25A Suction Pump meets strict European safety and quality standards. It has passed EU CE certification, assuring users of its compliance with high safety and performance benchmarks.
• Foot Switch for Hands-Free Operation: For added convenience, the pump can be equipped with a foot switch. This allows for hands-free operation, which is particularly useful during surgical procedures.

Specifications

• Max. Vacuum: -0.09MPa
• Adjustable Vacuum Scale: -0.01MPa to -0.09MPa
• Suction Rate: 35L/min
• Power Source: AC220V±10%, 50Hz±2%
• Power Consumption: ?150VA
• Noise Level: ?55dB(A)

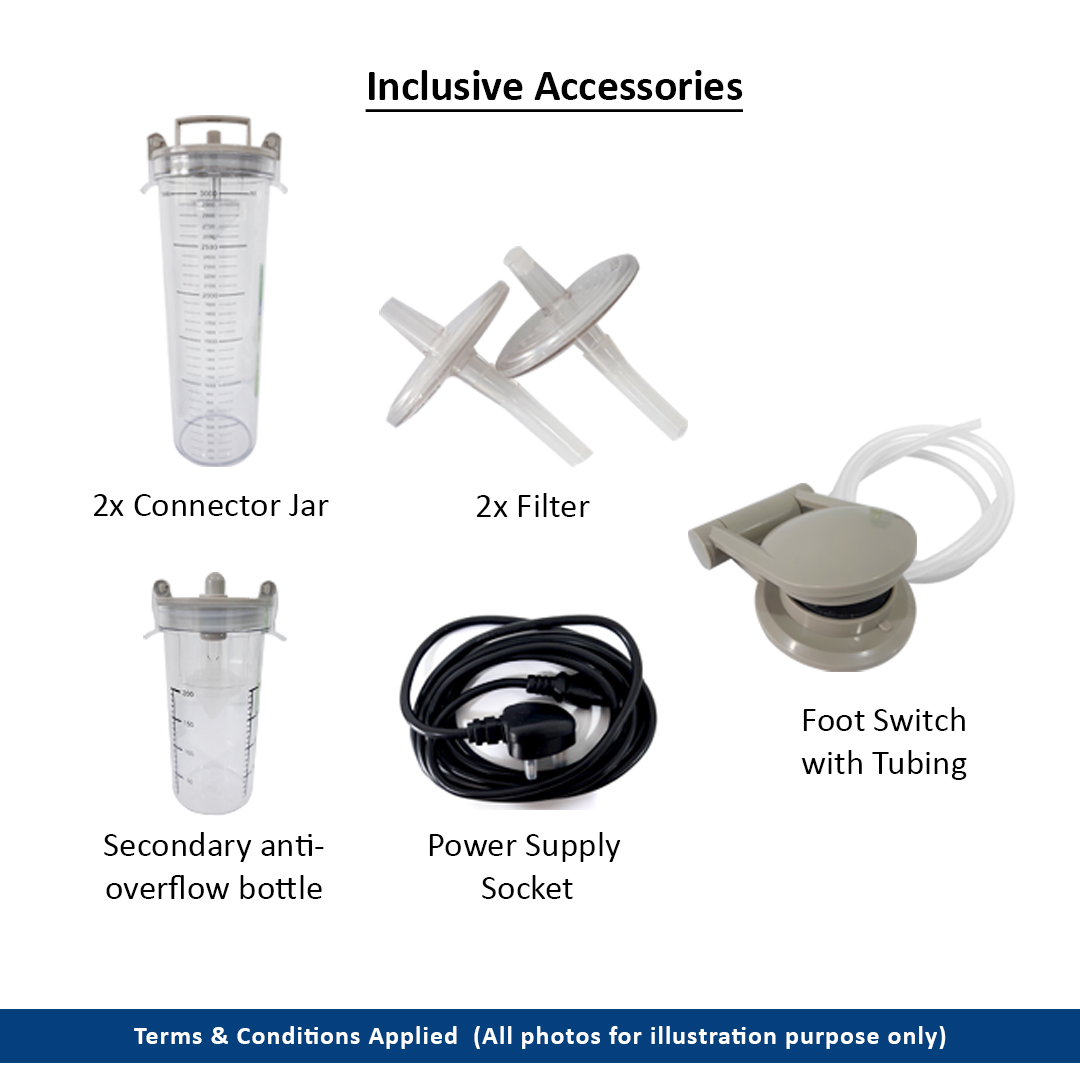

• Collection Jar: 2L×2 (optional 3L liquid bottle available)
• Dimensions: 500(L) x 460(W) x 960(H) mm
• Net Weight: 20kg
